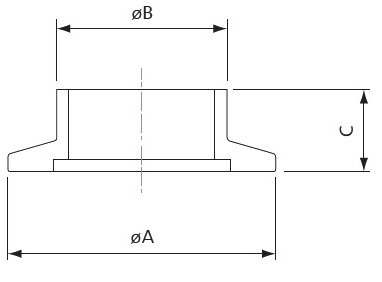

| Part No. | Size | Material | A | B | C |
| EV01016 | KF10 | 304 S.S. | 30 | 14 | 30 |
| EV01017 | KF16 | 304 S.S. | 30 | 20 | 30 |
| EV01018 | KF25 | 304 S.S. | 40 | 28 | 30 |
| EV01019 | KF40 | 304 S.S. | 55 | 45 | 30 |
| EV01020 | KF50 | 304 S.S. | 75 | 57 | 30 |
KF Fittings
Compare
Half Nipple Short
$13.00 – $34.50
These KF-type half nipples (short) follow KF standards and have different flange sizes from KF-10 to KF-50. They are commonly used to build fore-line vacuum plumbing and process systems. Because they are simple to put together, they are frequently referred to as quick flange fittings. A circumferential clamp and centring ring creates the vacuum seal between the connecting flanges. An O-ring made of rubber elastomer is part of the centring ring. Quick flange fittings come in the following standard sizes: KF-10, KF-16, KF-25, KF-40, and KF-50. They are made up of corrosion-resistant stainless steel.
| Size | KF10, KF16, KF25, KF40, KF50 |
|---|
